Cardboard tubes are cylindrical paperboard containers made from multiple layers of kraft paper or recycled paper. They are lightweight yet durable, making them an ideal packaging choice for protecting products during storage, transport, and display. Depending on the design, cardboard tubes can be single-use or reusable, plain or custom-printed, and eco-friendly by using recyclable or biodegradable materials.
1. Types of Cardboard Tubes
Cardboard tubes come in a variety of structures, each designed for specific product needs and branding goals. Choosing the right style ensures both functionality and a premium presentation. Below are the most common types of custom cardboard tubes used across industries.

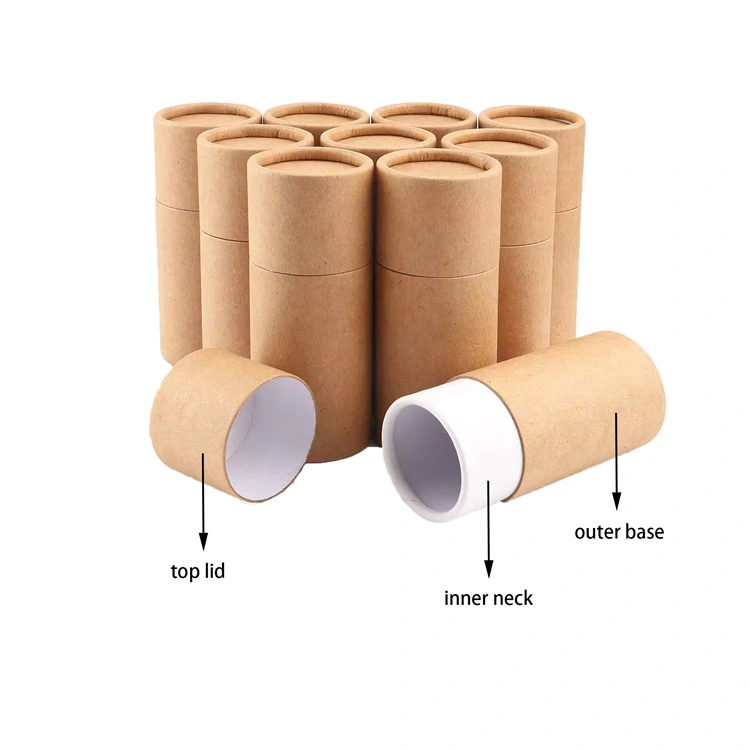

Standard 3-piece Tube
The most common type of cardboard tube is the standard 3-piece tube. As shown in the image, it consists of three parts: the top lid, the outer base, and the inner neck.
The top lid is shorter than the outer base, and when closed, the neck is not visible from the outside.
This clean, seamless look makes it suitable for a wide range of products, from cosmetics to food packaging.

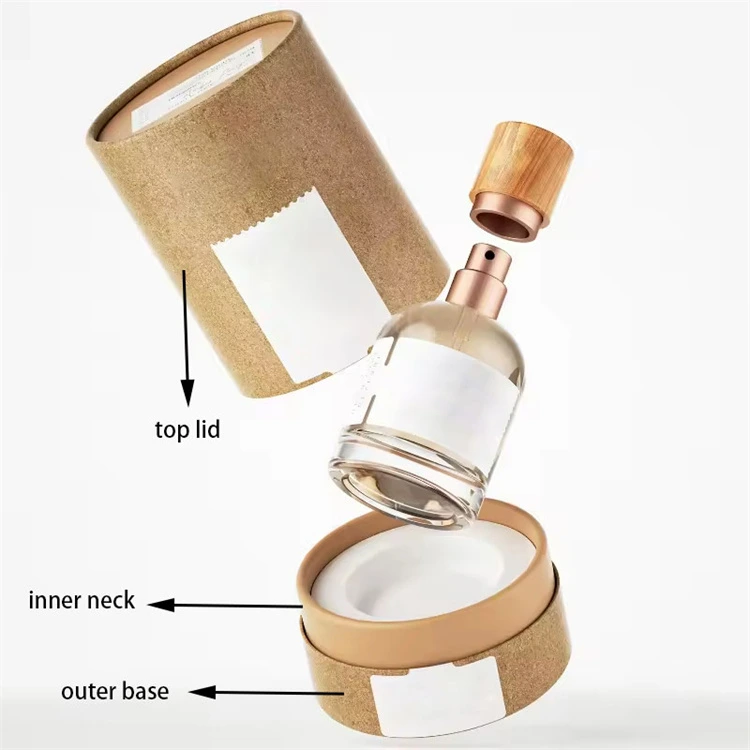

Upside-down 3-piece Tube
The second type is the upside-down 3-piece tube, which also has three parts: the outer base, inner neck, and top lid. In this design, the top lid is longer than the outer base.
When sealed, the neck remains hidden, just like the standard version.
This style is especially suitable for bottles, as it makes them easier to remove and often includes an insert to hold the bottle securely in place.

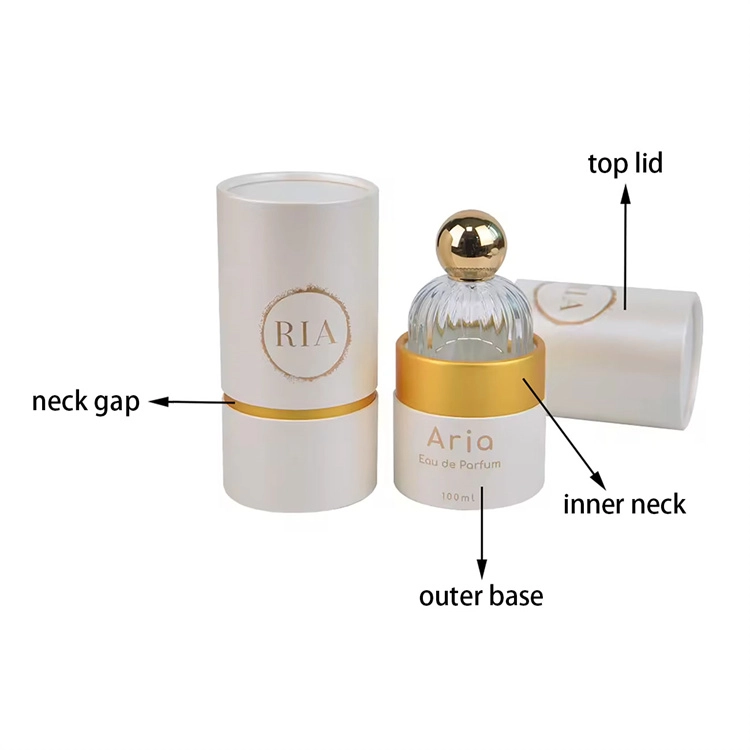

Neck-gap Tube
The third type is the neck-gap tube. It also consists of the inner neck, outer base, and top lid.
However, after sealing, a portion of the neck remains exposed.
This design works well for brands that want a unique look with a distinct visual effect. It’s popular with premium and design-focused products.
2-piece Tube
The fourth type is the 2-piece tube, made up of only the top lid and bottom base.
The lid is shorter than the base, so once sealed, part of the longer bottom base is exposed.
Because it has only two components, this structure is less durable than the 3-piece style but uses fewer materials, making it more cost-effective, attractive for businesses seeking budget-friendly and eco-conscious packaging.
Push-up Tube
The fifth type is the push-up tube, which includes three parts: the inner neck, outer base, and top lid.
Unlike conventional 3-piece tubes, this style features a removable bottom panel.
It is commonly used for lip balms, deodorants, and other solid cosmetics.
The inner lining is usually made of food-grade vegetable wax.
Twist-up Tube
The sixth type is the twist-up tube, also consisting of the inner neck, outer base, and top lid.
Unlike the push-up style, its bottom panel is fixed. Instead, it uses a plastic or metal spiral mechanism to push the product upward.
Like push-up tubes, the inner lining is typically made of food-grade vegetable wax.

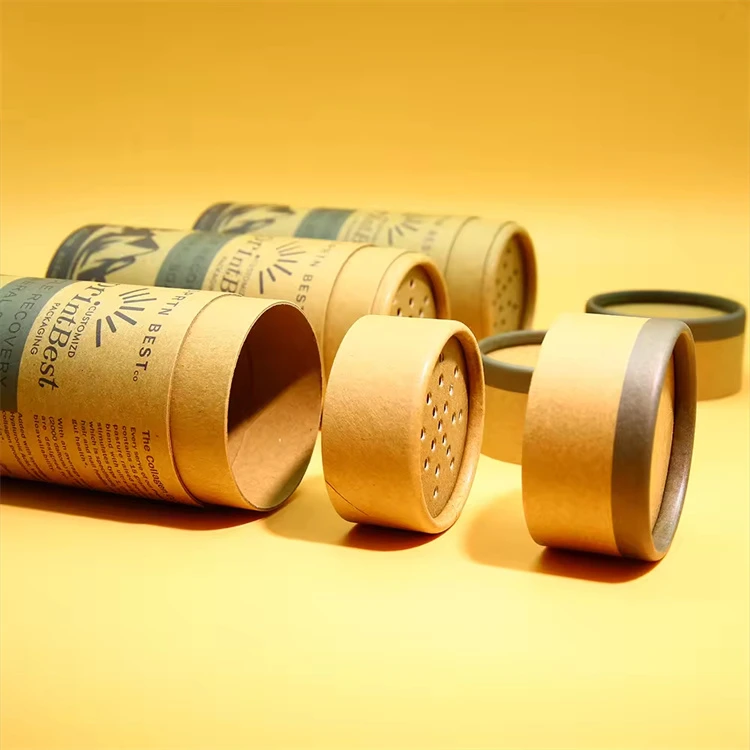

Paper Shaker Tube
The seventh type is the paper shaker tube, which has four components: the inner neck, outer base, top lid, and a shaker insert.
The bottom is fixed, and the lining is again typically made of food-grade vegetable wax. This design is ideal for powder products.
2. Lid Options
The lid is one of the most important elements of a cardboard tube, as it not only secures the product but also influences functionality, durability, and overall presentation. Depending on the product type and branding requirements, there are several lid options available.
Cardboard Lids
Cardboard lids are the most common and cost-effective choice. They are made from the same paperboard material as the tube body, creating a seamless, eco-friendly look.
Cardboard lids can be printed, embossed, or finished with coatings to match the brand’s identity.
They are ideal for tea, coffee, snacks, cosmetics, and general retail packaging, where sustainability and customization are top priorities.

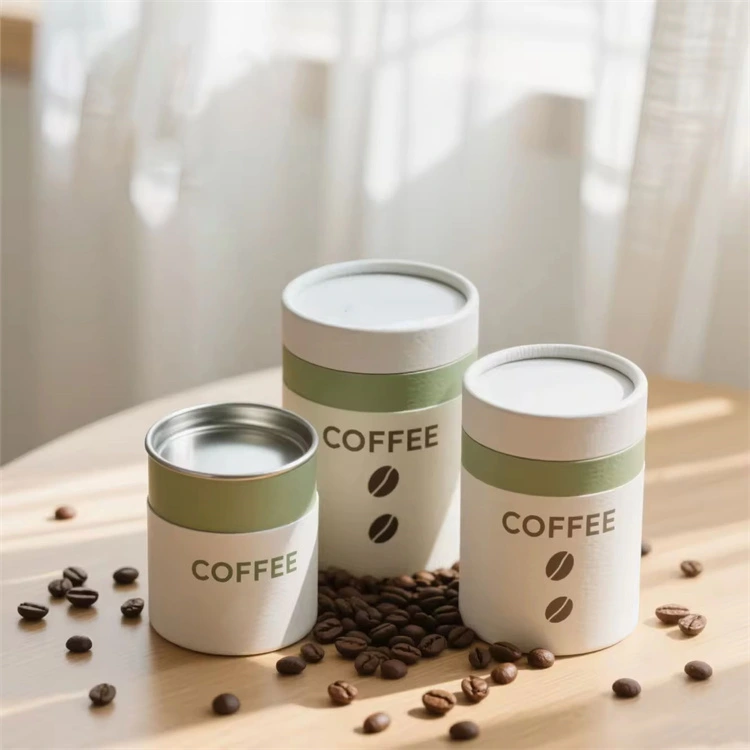

Metal Caps
Metal caps provide a premium appearance and enhanced durability.
Often made from tin or aluminum, they add strength to the tube while creating a high-end feel.
This option is especially popular for luxury goods, candles, liquor bottles, and specialty food products, where packaging doubles as part of the product experience.
Airtight Aluminum Foil Lids
For products that require maximum freshness and protection, airtight aluminum foil lids are the best choice.
These lids create a secure, tamper-evident seal that locks in flavor, aroma, and product quality.
They are commonly used in food, beverage, supplements, and health products. In many cases, foil lids are paired with cardboard or metal closures to ensure both practicality and branding appeal.
3. Customization Features
Custom cardboard tubes offer extensive options to match your product requirements, branding, and customer experience goals. From dimensions to materials and decorative elements, every aspect of the tube can be tailored for maximum impact.
Sizes and Dimensions
Cardboard tubes can be manufactured in a wide range of diameters, heights, and wall thicknesses. Whether you need a slim tube for cosmetics, a tall tube for bottles, or a large-diameter tube for gift packaging, custom sizing ensures the perfect fit for your product. Choosing the right dimensions also enhances protection during shipping and provides a polished shelf presence.
Materials and Inner Linings
The choice of materials directly affects durability, sustainability, and product safety. Most cardboard tubes are made from kraft paper, recycled paperboard, or high-density paperboard. For products that require additional protection, tubes can include inner linings such as:
- Food-grade vegetable wax or PE coatings – ideal for consumables like tea, coffee, snacks, and supplements.
- Eco-friendly biodegradable linings – perfect for sustainable packaging initiatives.
- Protective inserts – for fragile items such as cosmetics, glass bottles, or luxury goods.
These options ensure that products remain safe while supporting eco-conscious practices.
Printing and Branding Options
Custom cardboard tubes can serve as a powerful branding platform. Printing and finishing options include:
- Full-color CMYK or Pantone printing for logos, patterns, and product information.
- Embossing and debossing for a tactile, premium look.
- Foil stamping or metallic finishes to create luxury appeal.
- Matte, gloss, or soft-touch coatings to enhance visual and tactile experiences.
By customizing your tube design, you can create a distinctive unboxing experience that reinforces brand identity and encourages repeat purchases.
Additional Features
Beyond size, materials, and printing, cardboard tubes can be enhanced with special features to improve functionality and aesthetics:

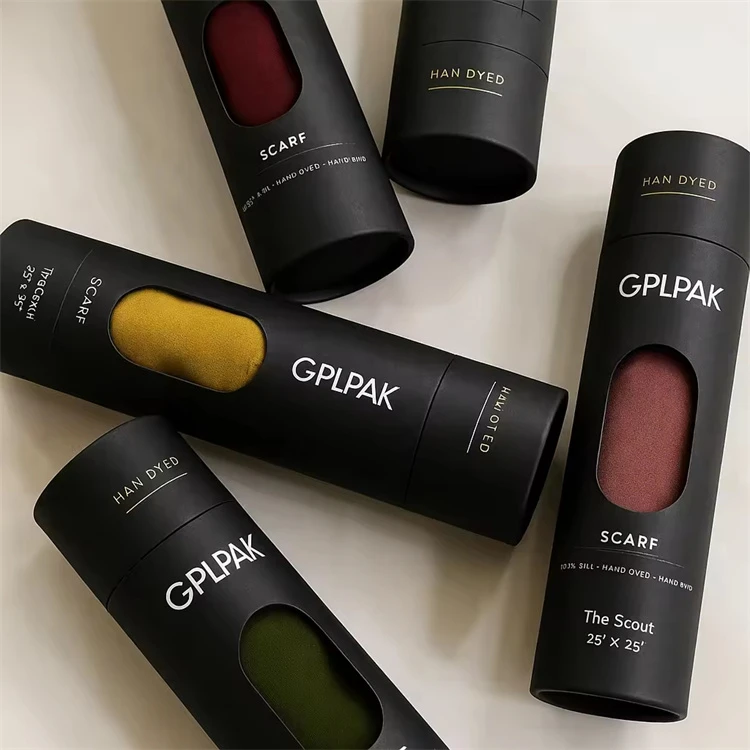

- Windows – showcase your product inside the tube without opening it.

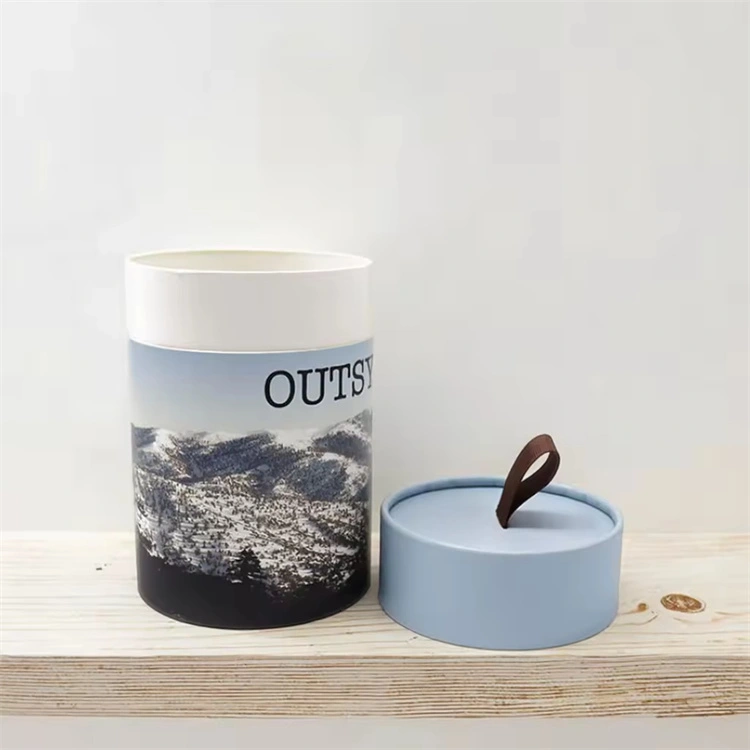

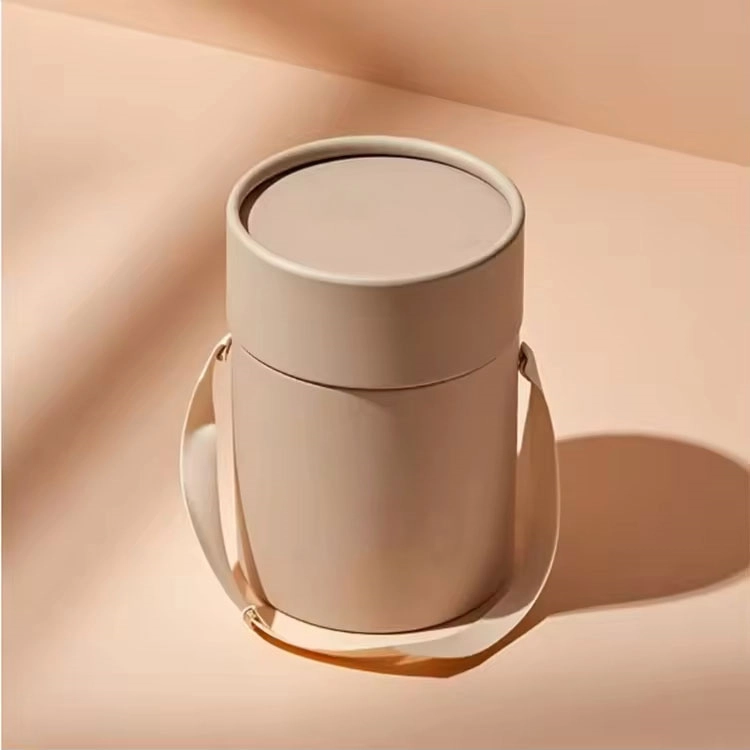

- Handles or ribbon tabs – for easy carrying or gift-ready packaging.
- Inserts and compartments – secure delicate or multiple items inside the tube.
- Unique closures or decorative lids – for added protection and visual appeal.
These customization options make cardboard tubes versatile for a wide range of industries, from food and cosmetics to fashion and e-commerce, while also supporting sustainability and premium branding goals.
4. Applications by Industry
Custom cardboard tubes are highly versatile, making them a preferred packaging solution across multiple industries. Their balance of sustainability, durability, and premium presentation allows brands to enhance both product protection and customer experience. Below are the most common industries that benefit from custom tube packaging.
Food & Beverage
Cardboard tubes are an excellent choice for tea, coffee, spices, snacks, and confectionery. With food-grade linings such as vegetable wax or aluminum foil, they keep products fresh and safe. Beyond functionality, paper tubes also offer a premium and eco-friendly alternative to plastic or tins, helping food and beverage brands align with consumer demand for sustainable packaging.
Cosmetics & Personal Care
From lip balms and deodorants to skincare creams, essential oils, and perfumes, cardboard tubes are widely used in the beauty industry. Push-up and twist-up tubes are particularly popular for solid cosmetics, while 3-piece tubes provide a luxury unboxing experience for perfumes and skincare sets. Their customizable design supports strong brand storytelling through printing, embossing, and specialty finishes.
Health & Wellness
The wellness industry increasingly embraces cardboard tubes for packaging supplements, vitamins, CBD products, and eco-friendly toiletries. These products often require protective and tamper-resistant packaging, which tubes provide. At the same time, the recyclable nature of cardboard supports the industry’s focus on natural and sustainable lifestyles.
Fashion & Lifestyle
For watches, jewelry, candles, and premium gift items, cardboard tubes offer a sophisticated packaging solution that enhances perceived value. Their cylindrical shape stands out on shelves and creates a memorable presentation for luxury and lifestyle products. Many brands also use inserts or custom compartments to protect delicate items while maintaining a high-end aesthetic.
Retail & E-Commerce
In the era of online shopping, packaging plays a key role in customer experience. Retail and e-commerce brands use custom cardboard tubes as sustainable packaging that doubles as a marketing tool. Durable enough to withstand shipping, yet stylish enough to serve as part of the unboxing journey, tubes help businesses reduce waste while strengthening their brand identity.
